About the Equipment

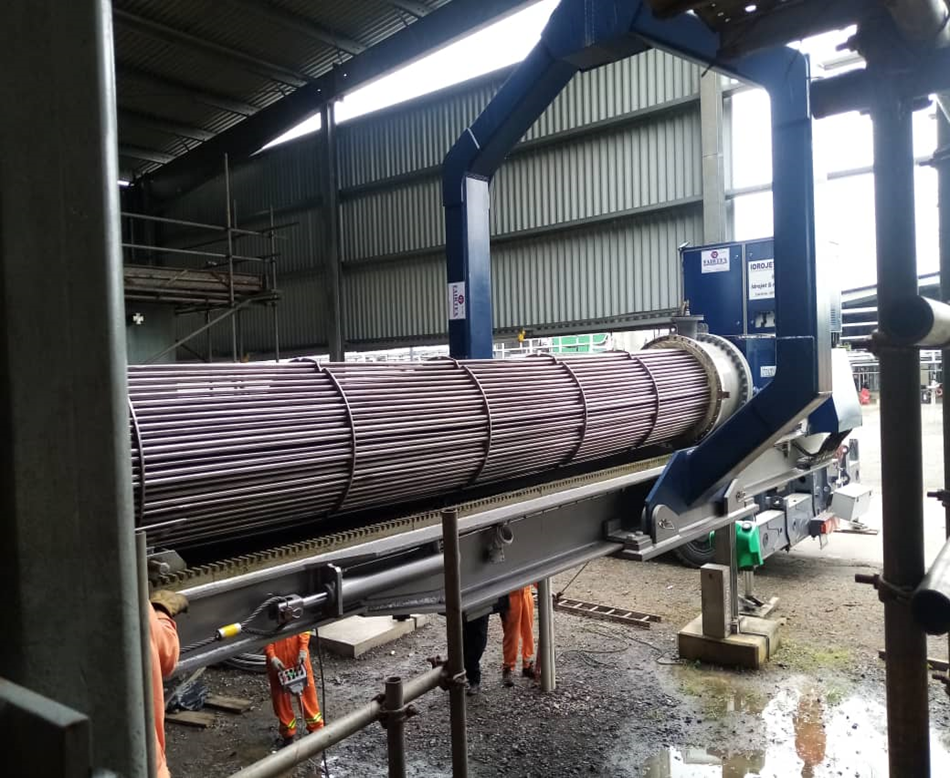

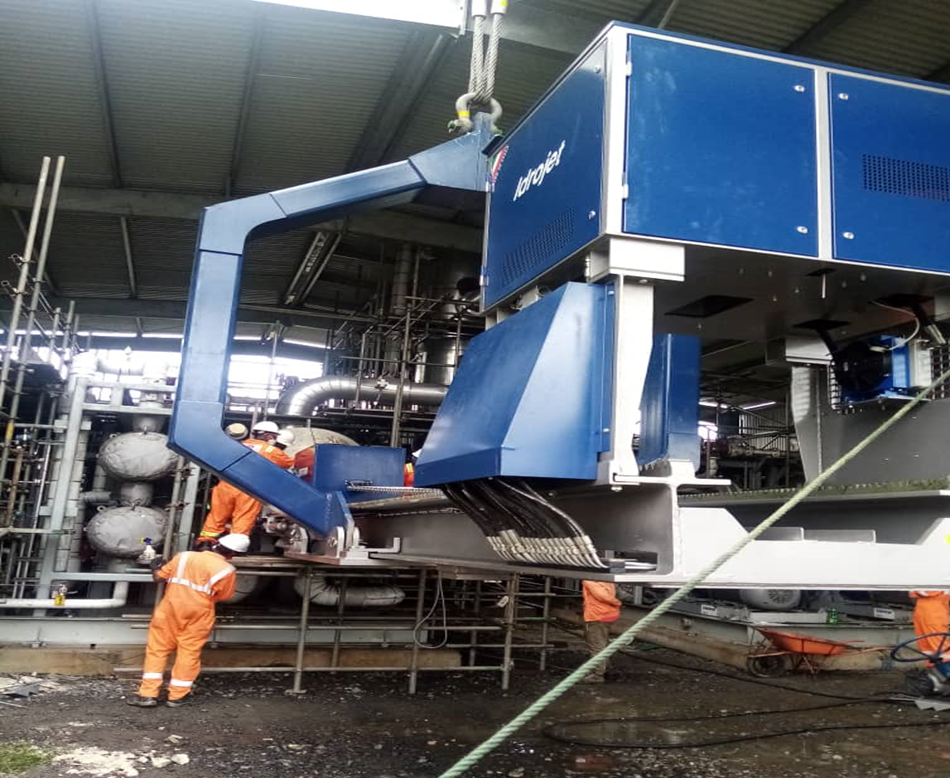

The Bundle Pulling Extractor is a hydraulic-assisted exchanger maintenance system used for the controlled extraction and insertion of heat exchanger tube bundles during inspection, maintenance, retubing, cleaning, and turnaround activities.
The equipment is designed to support maintenance operations across refinery, petrochemical, offshore, gas processing, and industrial plant environments where safe handling and positioning of exchanger bundles are required. The rail-guided pulling arrangement assists with alignment control and minimizes handling instability during bundle movement operations.
The system is suitable for shutdown campaigns, workshop overhaul activities, and field maintenance operations requiring controlled bundle transfer between exchanger shells and maintenance work zones.
Typical use case: Extraction and reinsertion of shell-and-tube heat exchanger bundles during inspection, hydrotesting, mechanical cleaning, retubing, and turnaround maintenance activities.
Operational Use
- Heat exchanger bundle extraction
- Tube bundle reinsertion operations
- Shutdown and turnaround maintenance support
- Refinery exchanger maintenance activities
- Mechanical cleaning preparation
- Workshop overhaul support
- Tube inspection access operations
- Controlled exchanger handling during maintenance
Safety and Handling Considerations
- Supports controlled linear extraction movement
- Helps reduce manual handling exposure
- Improves bundle alignment during insertion activities
- Suitable for managed maintenance work zones
- Requires trained operational personnel during deployment
- Deployment area should remain isolated during extraction operations
Why Fairtex Uses It
Fairtex deploys the Bundle Pulling Extractor to support exchanger maintenance operations during shutdowns, turnaround campaigns, and planned maintenance activities. The system assists maintenance teams with safer handling, controlled extraction, and improved operational efficiency when working on shell-and-tube exchanger systems across industrial facilities.
